Chicago Brick Oven 1000 DIY Wood Fired Pizza Oven Kit

Chicago Brick Oven 1000 DIY Wood Fired Pizza Oven Kit

With over 2,000 square inches of cooking space, the CBO-1000 Commercial Pizza Oven DIY Kit is the ideal high-output commercial oven. It uses three methods to cook efficiently: convection, radiant and conduction.

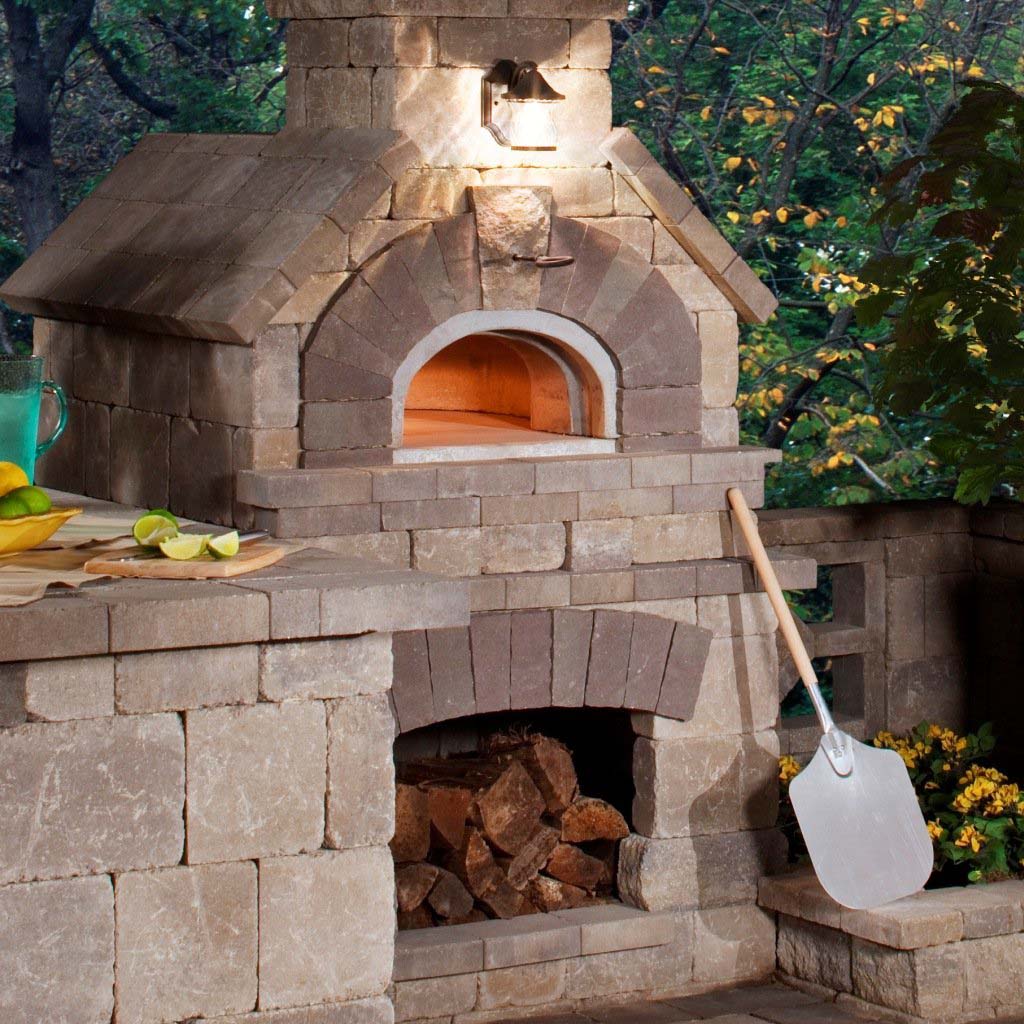

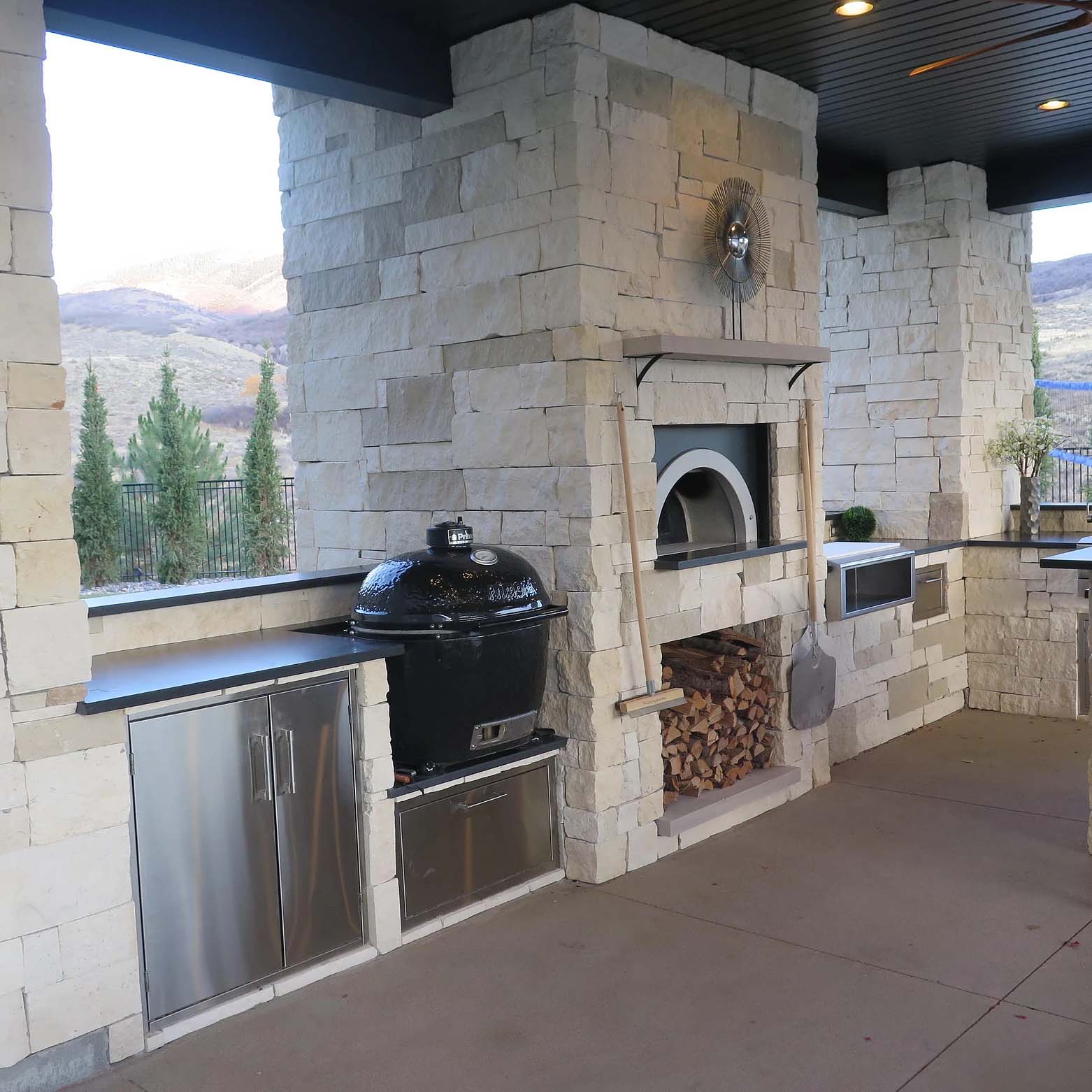

Build the outdoor oven enclosure of your dreams in brick or stone to fit your individual style. This CBO oven is made of high-grade refractory materials that have alumina, silica and stainless steel fibers throughout the entire mixture. This mixture of materials helps prevent thermal shock, expansion and cracking.

The insulation blanket increases heat retention and the oven's unique shape creates a FlameRoll® which pulls the flame horizontally across the top of the dome and then vertically back down the side, creating higher temperatures for superior cooking.

This design allows the oven to reach temperatures in excess of 1,000° F.

FEATURES

• Commercial grade refractory cement interior can hold heat in excess of 1000ºF
• Cook anything in this oven that you would on a grill or a conventional oven
• FlameRoll® technology generates high even temperatures, ensuring a perfect cook every time
• Made in the USA

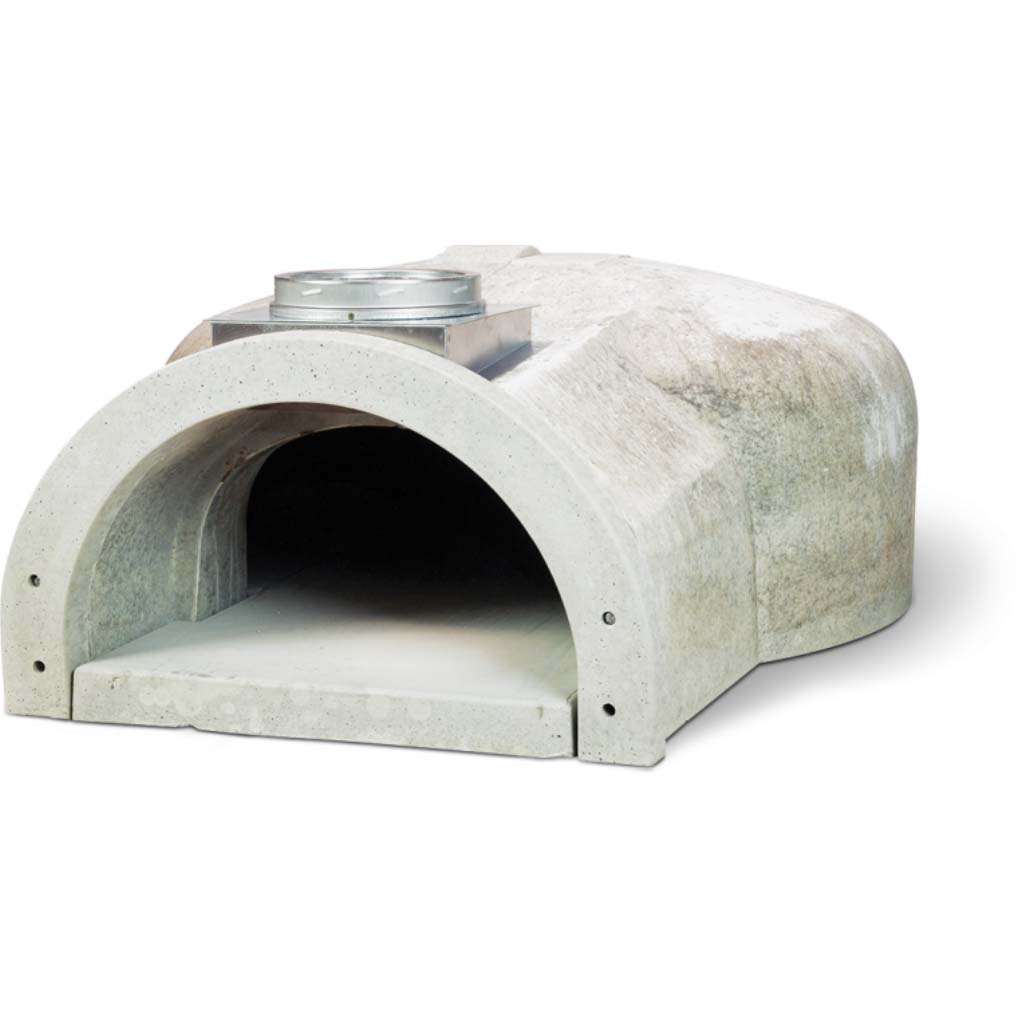

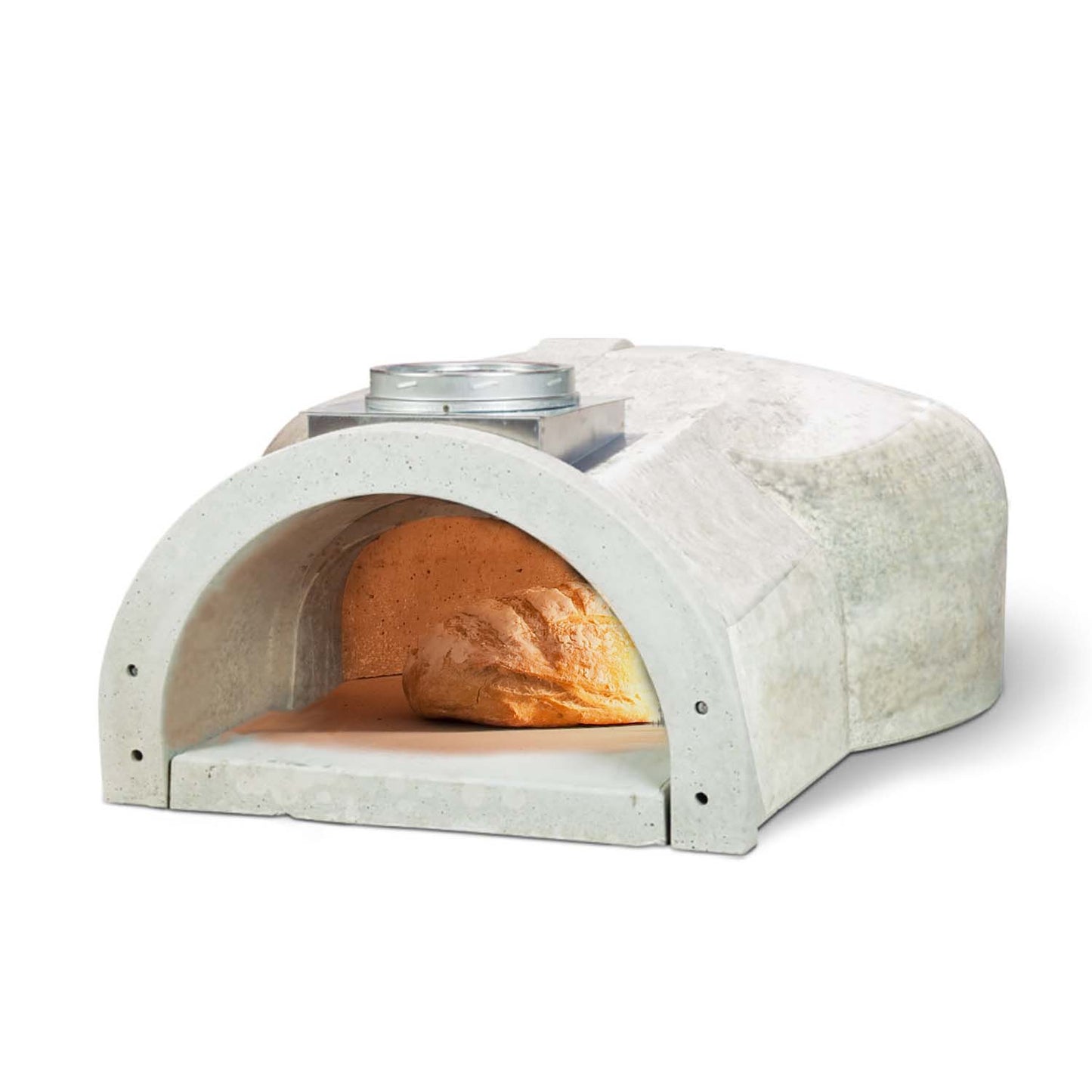

• 7 Piece Oven Included (2-piece dome, 3-piece hearth, arch, door)
• 53" x 39" cooking surface

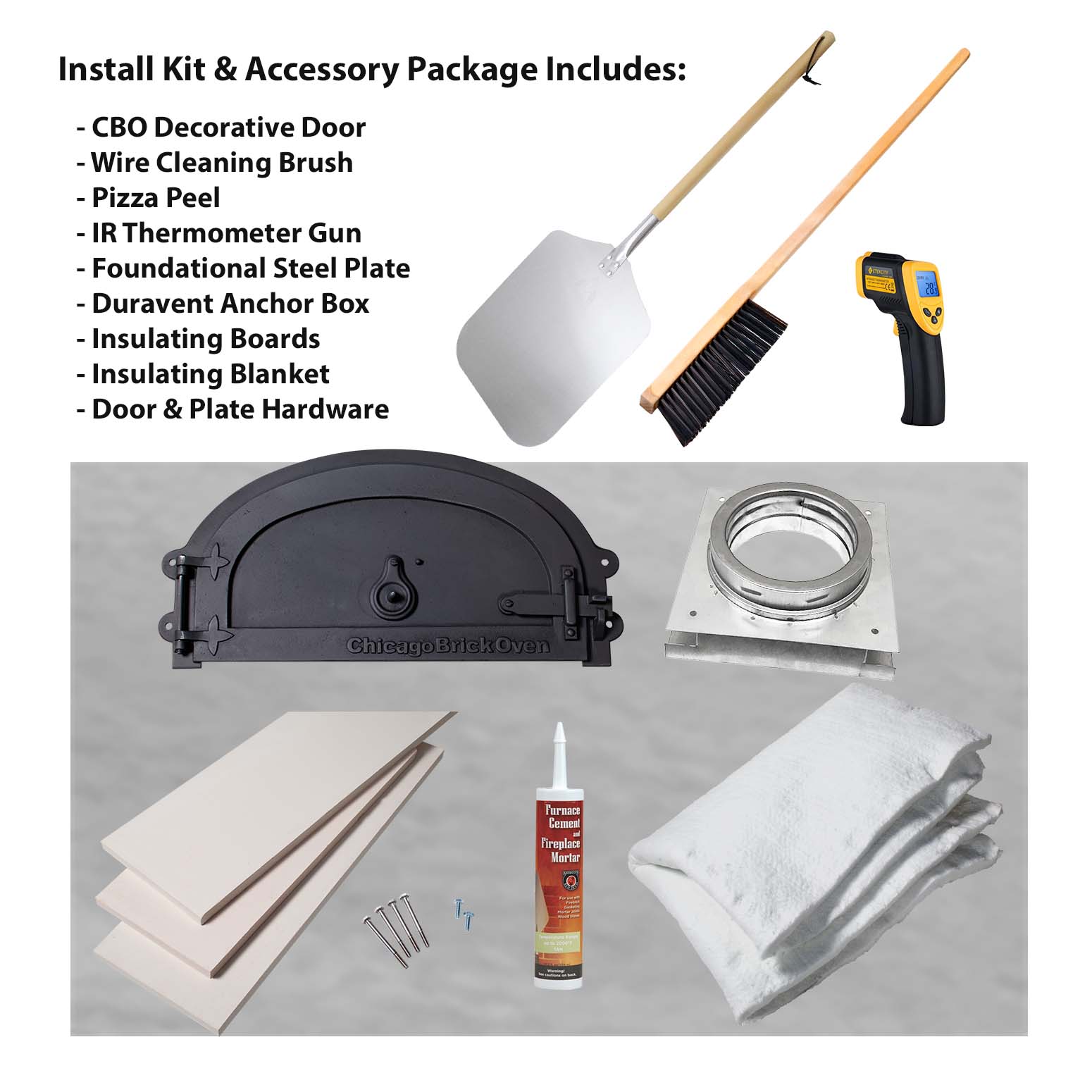

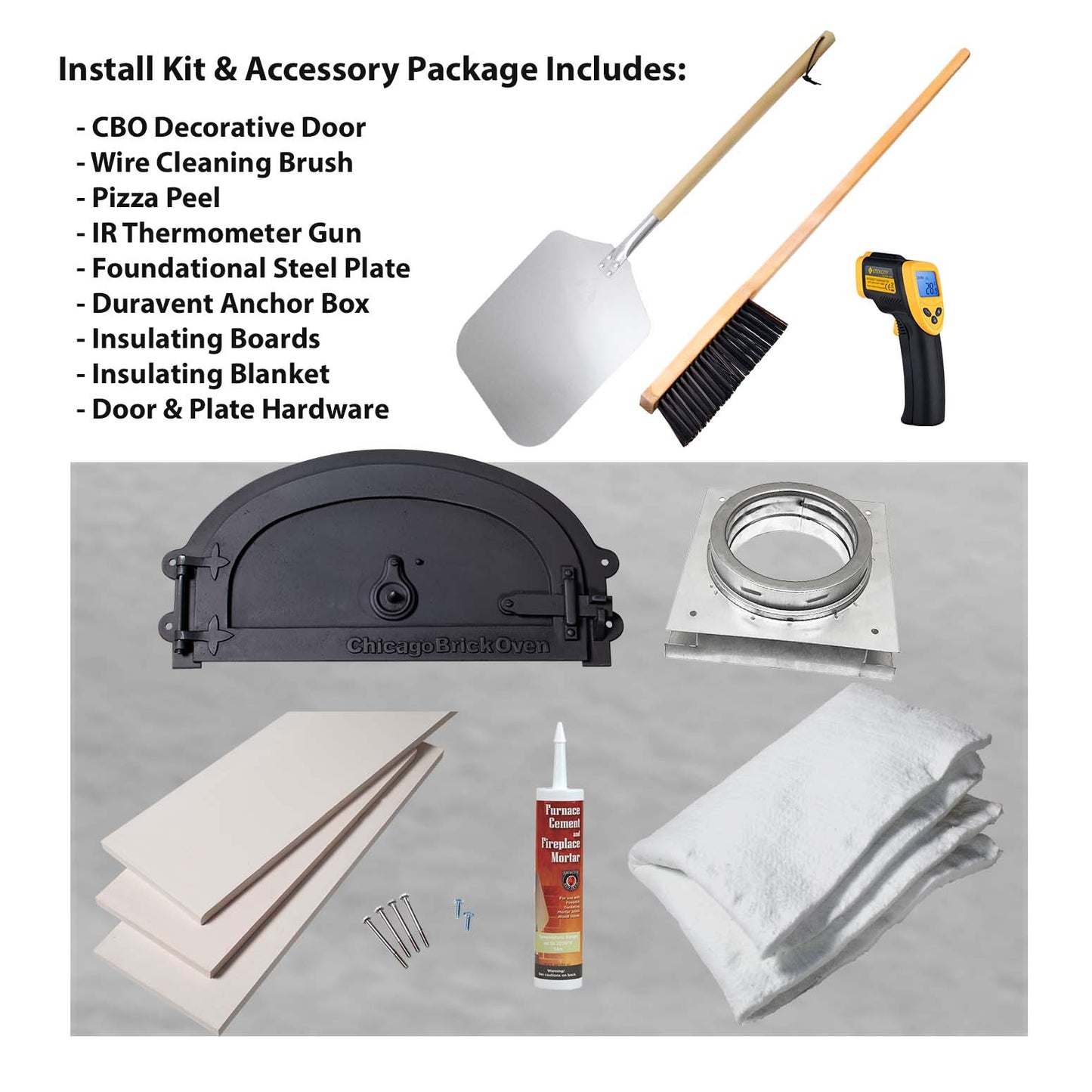

• Install kit includes anchor plate, insulating board & blanket, steel plate, and mortar
• Pizza peel, brush, and infrared thermometer gun included

SPECS

• Weight: 950 lbs
• Overall Dimensions: 50" W × 19.5" H × 58.5 " D

• Opening Dimensions: 21" W x 13.5" H
• CHIMNEY: The CBO-1000 Oven comes with a DuraVent 8" Anchor Plate (Model #8DT-AP) that works with a Class A Stainless Steel DuraTech 8" Double Wall Pipe (Model #8DT-24SS) to meet Standard HT 103.

A minimum 24-inch pipe section is required. If you are assembling your Chimney at 90,° you can add additional 24-inch sections as required. (The Chimney Pipe cannot have a total bend of more than 30.°) The taller the Flue Stack is, the further away the exhaust is from the cook!

Chicago Brick Oven 1000 DIY Ready to Finish Wood Fire Pizza Oven Downloads

Chicago Brick Oven 1000 DIY Wood Pizza Oven Spec Sheet

Chicago Brick Oven User Manual
